Many of us, old MySQL DBAs used Seconds_Behind_Source from SHOW REPLICA STATUS to find out the status and correct execution of (asynchronous) replication.
Please pay attention of the new terminology. I’m sure we’ve all used the old terminology.
However, MySQL replication has evolved a lot and the replication team has worked to include a lot of useful information about all the replication flavors available with MySQL.
For example, we’ve added parallel replication, group replication, … all that information is missing from the the good old SHOW REPLICA STATUS result.
There much better ways to monitoring and observing the replication process(es) using Performance_Schema.
Currently in Performance_Schema, there are 15 tables relating to replication instrumentation:
+------------------------------------------------------+
| Tables_in_performance_schema (replication%) |
+------------------------------------------------------+
| replication_applier_configuration |
| replication_applier_filters |
| replication_applier_global_filters |
| replication_applier_status |
| replication_applier_status_by_coordinator |
| replication_applier_status_by_worker |
| replication_asynchronous_connection_failover |
| replication_asynchronous_connection_failover_managed |
| replication_connection_configuration |
| replication_connection_status |
| replication_group_communication_information |
| replication_group_configuration_version |
| replication_group_member_actions |
| replication_group_member_stats |
| replication_group_members |
+------------------------------------------------------+
15 rows in set (0.0038 sec)But it’s true that it’s not always easy to understand these metrics mean and where to look for the useful information that matters for us MySQL DBAs: is my replication lagging behind the source ?
I’ve created a few views that can be installed in sys to use most of these metrics to get something relevant for us DBAs: mysql_8_replication_observability.sql
Let’s take a closer look at these views.
Replication Lag
select * from sys.replication_lag;
+---------------------------+-----------------------+------------------------+
| channel_name | max_lag_from_original | max_lag_from_immediate |
+---------------------------+-----------------------+------------------------+
| clusterset_replication | 00:00:04.963223 | 00:00:04.940782 |
| group_replication_applier | 0 | 0 |
+---------------------------+-----------------------+------------------------+From the output above, we can see that the MySQL instance is an asynchronous replica, but it’s also part of a group replication cluster.
In fact, this is the Primary Member of the DR cluster in an InnoDB ClusterSet.
We can also see that this replica is almost 5 seconds late (lag).
We then have the name of the replication channel and the maximum delay/lag (as there may be several workers in the case of parallel replication) with the original committer and the immediate source (in case of cascading replication).
On a secondary member of a group replication cluster (InnoDB Cluster), we can see the following output:
select * from sys.replication_lag;
+----------------------------+-----------------------+------------------------+
| channel_name | max_lag_from_original | max_lag_from_immediate |
+----------------------------+-----------------------+------------------------+
| group_replication_recovery | null | null |
| group_replication_applier | 00:00:02.733008 | 00:00:02.733008 |
+----------------------------+-----------------------+------------------------+We can see that the channel used for recovery (reading the missing binary log events, transactions, when a node joins the group) is not being used and that the group replication’s applier is lagging a little behind.
Replication status
This view is more complete, with a line for each workers.
Let’s take the example of our Primary member of the DR site of an InnoDB ClusterSet:
select * from replication_status;
+-------------------------------+----------+----------+---------+-------------------+--------------------+
| channel | io_state | co_state | w_state | lag_from_original | lag_from_immediate |
+-------------------------------+----------+----------+---------+-------------------+--------------------+
| group_replication_applier (1) | ON | ON | ON | none | none |
| group_replication_applier (2) | ON | ON | ON | none | none |
| group_replication_applier (3) | ON | ON | ON | none | none |
| group_replication_applier (4) | ON | ON | ON | none | none |
| clusterset_replication (1) | ON | ON | ON | 00:00:15.395870 | 00:00:15.380884 |
| clusterset_replication (2) | ON | ON | ON | 00:00:15.395686 | 00:00:15.380874 |
| clusterset_replication (3) | ON | ON | ON | 00:00:15.411204 | 00:00:15.388451 |
| clusterset_replication (4) | ON | ON | ON | 00:00:15.406154 | 00:00:15.388434 |
+-------------------------------+----------+----------+---------+-------------------+--------------------+We can see that parallel (asynchronous) replication from the Primary cluster uses 4 parallel workers.
We can also see that they are falling behind…
You may have noticed that there are 3 states (all at ON). Using SHOW REPLICA STATUS we can only see:
Replica_IO_Running: Yes
Replica_SQL_Running: YesWith parallel replication, we have another thread involved in replication during application of binlog events: the coordinator thread.

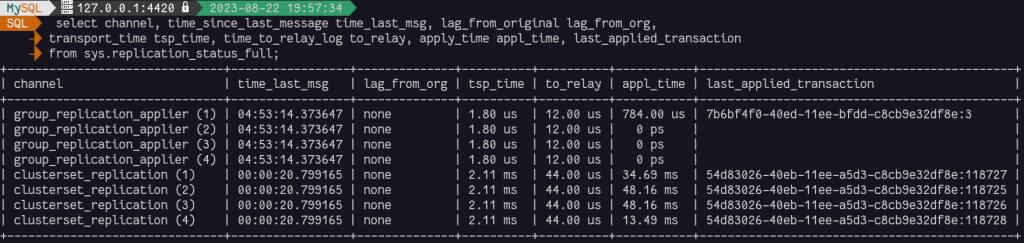

Replication Status Full
Of course, we can also have more details on replication.
Let’s take a look at an example result:
select * from sys.replication_status_full\G
*************************** 1. row ***************************
channel: group_replication_applier (1)
host: <NULL>
port: 0
user:
source_uuid: 7b6bf13d-40ed-11ee-bfdd-c8cb9e32df8e
group_name: 7b6bf13d-40ed-11ee-bfdd-c8cb9e32df8e
last_heartbeat_timestamp: 0000-00-00 00:00:00.000000
heartbeat_interval: 30
io_state: ON
io_thread_state: NULL
io_errno: 0
io_errmsg:
io_errtime: 0000-00-00 00:00:00.000000
co_state: ON
co_thread_state: Replica has read all relay log; waiting for more updates
co_errno: 0
co_errmsg:
co_errtime: 0000-00-00 00:00:00.000000
w_state: ON
w_thread_state: Waiting for an event from Coordinator
w_errno: 0
w_errmsg:
w_errtime: 0000-00-00 00:00:00.000000
time_since_last_message: 03:36:40.474223
applier_busy_state: IDLE
lag_from_original: none
lag_from_immediate: none
transport_time: 1.80 us
time_to_relay_log: 12.00 us
apply_time: 784.00 us
last_applied_transaction: 7b6bf4f0-40ed-11ee-bfdd-c8cb9e32df8e:3
last_queued_transaction: 7b6bf4f0-40ed-11ee-bfdd-c8cb9e32df8e:3
queued_gtid_set_to_apply:
*************************** 2. row ***************************
channel: group_replication_applier (2)
host: <NULL>
port: 0
user:
source_uuid: 7b6bf13d-40ed-11ee-bfdd-c8cb9e32df8e
group_name: 7b6bf13d-40ed-11ee-bfdd-c8cb9e32df8e
last_heartbeat_timestamp: 0000-00-00 00:00:00.000000
heartbeat_interval: 30
io_state: ON
io_thread_state: NULL
io_errno: 0
io_errmsg:
io_errtime: 0000-00-00 00:00:00.000000
co_state: ON
co_thread_state: Replica has read all relay log; waiting for more updates
co_errno: 0
co_errmsg:
co_errtime: 0000-00-00 00:00:00.000000
w_state: ON
w_thread_state: Waiting for an event from Coordinator
w_errno: 0
w_errmsg:
w_errtime: 0000-00-00 00:00:00.000000
time_since_last_message: 03:36:40.474223
applier_busy_state: IDLE
lag_from_original: none
lag_from_immediate: none
transport_time: 1.80 us
time_to_relay_log: 12.00 us
apply_time: 0 ps
last_applied_transaction:
last_queued_transaction: 7b6bf4f0-40ed-11ee-bfdd-c8cb9e32df8e:3
queued_gtid_set_to_apply:
*************************** 3. row ***************************
channel: group_replication_applier (3)
host: <NULL>
port: 0
user:
source_uuid: 7b6bf13d-40ed-11ee-bfdd-c8cb9e32df8e
group_name: 7b6bf13d-40ed-11ee-bfdd-c8cb9e32df8e
last_heartbeat_timestamp: 0000-00-00 00:00:00.000000
heartbeat_interval: 30
io_state: ON
io_thread_state: NULL
io_errno: 0
io_errmsg:
io_errtime: 0000-00-00 00:00:00.000000
co_state: ON
co_thread_state: Replica has read all relay log; waiting for more updates
co_errno: 0
co_errmsg:
co_errtime: 0000-00-00 00:00:00.000000
w_state: ON
w_thread_state: Waiting for an event from Coordinator
w_errno: 0
w_errmsg:
w_errtime: 0000-00-00 00:00:00.000000
time_since_last_message: 03:36:40.474223
applier_busy_state: IDLE
lag_from_original: none
lag_from_immediate: none
transport_time: 1.80 us
time_to_relay_log: 12.00 us
apply_time: 0 ps
last_applied_transaction:
last_queued_transaction: 7b6bf4f0-40ed-11ee-bfdd-c8cb9e32df8e:3
queued_gtid_set_to_apply:
*************************** 4. row ***************************
channel: group_replication_applier (4)
host: <NULL>
port: 0
user:
source_uuid: 7b6bf13d-40ed-11ee-bfdd-c8cb9e32df8e
group_name: 7b6bf13d-40ed-11ee-bfdd-c8cb9e32df8e
last_heartbeat_timestamp: 0000-00-00 00:00:00.000000
heartbeat_interval: 30
io_state: ON
io_thread_state: NULL
io_errno: 0
io_errmsg:
io_errtime: 0000-00-00 00:00:00.000000
co_state: ON
co_thread_state: Replica has read all relay log; waiting for more updates
co_errno: 0
co_errmsg:
co_errtime: 0000-00-00 00:00:00.000000
w_state: ON
w_thread_state: Waiting for an event from Coordinator
w_errno: 0
w_errmsg:
w_errtime: 0000-00-00 00:00:00.000000
time_since_last_message: 03:36:40.474223
applier_busy_state: IDLE
lag_from_original: none
lag_from_immediate: none
transport_time: 1.80 us
time_to_relay_log: 12.00 us
apply_time: 0 ps
last_applied_transaction:
last_queued_transaction: 7b6bf4f0-40ed-11ee-bfdd-c8cb9e32df8e:3
queued_gtid_set_to_apply:
*************************** 5. row ***************************
channel: clusterset_replication (1)
host: 127.0.0.1
port: 3310
user: mysql_innodb_cs_b0adbc6c
source_uuid: 2cb77a02-40eb-11ee-83f4-c8cb9e32df8e
group_name:
last_heartbeat_timestamp: 2023-08-22 18:48:41.037817
heartbeat_interval: 30
io_state: ON
io_thread_state: Waiting for source to send event
io_errno: 0
io_errmsg:
io_errtime: 0000-00-00 00:00:00.000000
co_state: ON
co_thread_state: Waiting for replica workers to process their queues
co_errno: 0
co_errmsg:
co_errtime: 0000-00-00 00:00:00.000000
w_state: ON
w_thread_state: waiting for handler commit
w_errno: 0
w_errmsg:
w_errtime: 0000-00-00 00:00:00.000000
time_since_last_message: 00:00:00.001134
applier_busy_state: APPLYING
lag_from_original: 00:00:01.799071
lag_from_immediate: 00:00:01.783404
transport_time: 2.26 ms
time_to_relay_log: 19.00 us
apply_time: 14.63 ms
last_applied_transaction: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105180
last_queued_transaction: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105547
queued_gtid_set_to_apply: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105184-105547
*************************** 6. row ***************************
channel: clusterset_replication (2)
host: 127.0.0.1
port: 3310
user: mysql_innodb_cs_b0adbc6c
source_uuid: 2cb77a02-40eb-11ee-83f4-c8cb9e32df8e
group_name:
last_heartbeat_timestamp: 2023-08-22 18:48:41.037817
heartbeat_interval: 30
io_state: ON
io_thread_state: Waiting for source to send event
io_errno: 0
io_errmsg:
io_errtime: 0000-00-00 00:00:00.000000
co_state: ON
co_thread_state: Waiting for replica workers to process their queues
co_errno: 0
co_errmsg:
co_errtime: 0000-00-00 00:00:00.000000
w_state: ON
w_thread_state: waiting for handler commit
w_errno: 0
w_errmsg:
w_errtime: 0000-00-00 00:00:00.000000
time_since_last_message: 00:00:00.001134
applier_busy_state: APPLYING
lag_from_original: 00:00:01.797743
lag_from_immediate: 00:00:01.783390
transport_time: 2.26 ms
time_to_relay_log: 19.00 us
apply_time: 21.47 ms
last_applied_transaction: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105181
last_queued_transaction: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105547
queued_gtid_set_to_apply: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105184-105547
*************************** 7. row ***************************
channel: clusterset_replication (3)
host: 127.0.0.1
port: 3310
user: mysql_innodb_cs_b0adbc6c
source_uuid: 2cb77a02-40eb-11ee-83f4-c8cb9e32df8e
group_name:
last_heartbeat_timestamp: 2023-08-22 18:48:41.037817
heartbeat_interval: 30
io_state: ON
io_thread_state: Waiting for source to send event
io_errno: 0
io_errmsg:
io_errtime: 0000-00-00 00:00:00.000000
co_state: ON
co_thread_state: Waiting for replica workers to process their queues
co_errno: 0
co_errmsg:
co_errtime: 0000-00-00 00:00:00.000000
w_state: ON
w_thread_state: waiting for handler commit
w_errno: 0
w_errmsg:
w_errtime: 0000-00-00 00:00:00.000000
time_since_last_message: 00:00:00.001134
applier_busy_state: APPLYING
lag_from_original: 00:00:01.786087
lag_from_immediate: 00:00:01.767563
transport_time: 2.26 ms
time_to_relay_log: 19.00 us
apply_time: 21.58 ms
last_applied_transaction: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105182
last_queued_transaction: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105547
queued_gtid_set_to_apply: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105184-105547
*************************** 8. row ***************************
channel: clusterset_replication (4)
host: 127.0.0.1
port: 3310
user: mysql_innodb_cs_b0adbc6c
source_uuid: 2cb77a02-40eb-11ee-83f4-c8cb9e32df8e
group_name:
last_heartbeat_timestamp: 2023-08-22 18:48:41.037817
heartbeat_interval: 30
io_state: ON
io_thread_state: Waiting for source to send event
io_errno: 0
io_errmsg:
io_errtime: 0000-00-00 00:00:00.000000
co_state: ON
co_thread_state: Waiting for replica workers to process their queues
co_errno: 0
co_errmsg:
co_errtime: 0000-00-00 00:00:00.000000
w_state: ON
w_thread_state: waiting for handler commit
w_errno: 0
w_errmsg:
w_errtime: 0000-00-00 00:00:00.000000
time_since_last_message: 00:00:00.001134
applier_busy_state: APPLYING
lag_from_original: 00:00:01.785881
lag_from_immediate: 00:00:01.767550
transport_time: 2.26 ms
time_to_relay_log: 19.00 us
apply_time: 29.59 ms
last_applied_transaction: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105183
last_queued_transaction: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105547
queued_gtid_set_to_apply: 54d83026-40eb-11ee-a5d3-c8cb9e32df8e:105184-105547With this view we have much more details, including the replication heartbeat, for example. We also have a an overview of GTIDs (queued, applied, …).
We also see information on transport time (the network), time to be write to the relay log and finally time to apply.
Of course, you can use the view to display whatever you need, like this for example:
MySQL InnoDB Cluster, ClusterSet, Read Replicas
If you use the nice integrated solutions managed by the Admin API with MySQL Shell, all that information is already available using the status() method.
The status() method can be extended with 3 values:
- 1: includes information about the Metadata Version, Group Protocol Version, Group name, cluster member UUIDs, cluster member roles and states as reported byGroup Replication and the list of fenced system variables;
- 2: includes information about transactions processed by connection and
applier; - 3: includes more detailed stats about the replication machinery of each
cluster member;
Let’s have a look at a ClusterSet example with extended option 3:
JS> cs.status({extended:3})
{
"clusters": {
"cluster2": {
"clusterRole": "REPLICA",
"clusterSetReplication": {
"applierQueuedTransactionSet": "54d83026-40eb-11ee-a5d3-c8cb9e32df8e:137385-138500",
"applierQueuedTransactionSetSize": 1116,
"applierState": "ON",
"applierStatus": "APPLYING",
"applierThreadState": "waiting for handler commit",
"applierWorkerThreads": 4,
"coordinatorState": "ON",
"coordinatorThreadState": "Waiting for replica workers to process their queues",
"options": {
"connectRetry": 3,
"delay": 0,
"heartbeatPeriod": 30,
"retryCount": 10
},
"receiver": "127.0.0.1:4420",
"receiverStatus": "ON",
"receiverThreadState": "Waiting for source to send event",
"receiverTimeSinceLastMessage": "00:00:00.002737",
"replicationSsl": null,
"source": "127.0.0.1:3310"
},
"clusterSetReplicationStatus": "OK",
"communicationStack": "MYSQL",
"globalStatus": "OK",
"groupName": "7b6bf13d-40ed-11ee-bfdd-c8cb9e32df8e",
"groupViewChangeUuid": "7b6bf4f0-40ed-11ee-bfdd-c8cb9e32df8e",
"paxosSingleLeader": "OFF",
"receivedTransactionSet": "54d83026-40eb-11ee-a5d3-c8cb9e32df8e:129-138500",
"ssl": "REQUIRED",
"status": "OK_NO_TOLERANCE",
"statusText": "Cluster is NOT tolerant to any failures.",
"topology": {
"127.0.0.1:4420": {
"address": "127.0.0.1:4420",
"applierWorkerThreads": 4,
"fenceSysVars": [
"read_only",
"super_read_only"
],
"memberId": "c3d726ac-40ec-11ee-ab38-c8cb9e32df8e",
"memberRole": "PRIMARY",
"memberState": "ONLINE",
"mode": "R/O",
"readReplicas": {},
"replicationLagFromImmediateSource": "00:00:05.420247",
"replicationLagFromOriginalSource": "00:00:05.433548",
"role": "HA",
"status": "ONLINE",
"version": "8.1.0"
},
"127.0.0.1:4430": {
"address": "127.0.0.1:4430",
"applierWorkerThreads": 4,
"fenceSysVars": [
"read_only",
"super_read_only"
],
"memberId": "709b15ea-40ed-11ee-a9b3-c8cb9e32df8e",
"memberRole": "SECONDARY",
"memberState": "ONLINE",
"mode": "R/O",
"readReplicas": {},
"replicationLagFromImmediateSource": "00:00:00.038075",
"replicationLagFromOriginalSource": "00:00:05.432536",
"role": "HA",
"status": "ONLINE",
"version": "8.1.0"
}
},
"transactionSet": "2cb77a02-40eb-11ee-83f4-c8cb9e32df8e:1-4,54d83026-40eb-11ee-a5d3-c8cb9e32df8e:1-137384,54d8329c-40eb-11ee-a5d3-c8cb9e32df8e:1-5,7b6bf4f0-40ed-11ee-bfdd-c8cb9e32df8e:1-3",
"transactionSetConsistencyStatus": "OK",
"transactionSetErrantGtidSet": "",
"transactionSetMissingGtidSet": "54d83026-40eb-11ee-a5d3-c8cb9e32df8e:137385-138552"
},
"myCluster": {
"clusterRole": "PRIMARY",
"communicationStack": "MYSQL",
"globalStatus": "OK",
"groupName": "54d83026-40eb-11ee-a5d3-c8cb9e32df8e",
"groupViewChangeUuid": "54d8329c-40eb-11ee-a5d3-c8cb9e32df8e",
"paxosSingleLeader": "OFF",
"primary": "127.0.0.1:3310",
"ssl": "REQUIRED",
"status": "OK",
"statusText": "Cluster is ONLINE and can tolerate up to ONE failure.",
"topology": {
"127.0.0.1:3310": {
"address": "127.0.0.1:3310",
"applierWorkerThreads": 4,
"fenceSysVars": [],
"memberId": "2cb77a02-40eb-11ee-83f4-c8cb9e32df8e",
"memberRole": "PRIMARY",
"memberState": "ONLINE",
"mode": "R/W",
"readReplicas": {
"127.0.0.1:4410": {
"address": "127.0.0.1:4410",
"applierStatus": "APPLYING",
"applierThreadState": "waiting for handler commit",
"applierWorkerThreads": 4,
"receiverStatus": "ON",
"receiverThreadState": "Waiting for source to send event",
"replicationSources": [
"PRIMARY"
],
"replicationSsl": "TLS_AES_256_GCM_SHA384 TLSv1.3",
"role": "READ_REPLICA",
"status": "ONLINE",
"version": "8.1.0"
}
},
"role": "HA",
"status": "ONLINE",
"version": "8.1.0"
},
"127.0.0.1:3320": {
"address": "127.0.0.1:3320",
"applierWorkerThreads": 4,
"fenceSysVars": [
"read_only",
"super_read_only"
],
"memberId": "327cb102-40eb-11ee-9904-c8cb9e32df8e",
"memberRole": "SECONDARY",
"memberState": "ONLINE",
"mode": "R/O",
"readReplicas": {},
"replicationLagFromImmediateSource": "00:00:04.536190",
"replicationLagFromOriginalSource": "00:00:04.536190",
"role": "HA",
"status": "ONLINE",
"version": "8.1.0"
},
"127.0.0.1:3330": {
"address": "127.0.0.1:3330",
"applierWorkerThreads": 4,
"fenceSysVars": [
"read_only",
"super_read_only"
],
"memberId": "3d141d7e-40eb-11ee-933b-c8cb9e32df8e",
"memberRole": "SECONDARY",
"memberState": "ONLINE",
"mode": "R/O",
"readReplicas": {},
"replicationLagFromImmediateSource": "00:00:04.652745",
"replicationLagFromOriginalSource": "00:00:04.652745",
"role": "HA",
"status": "ONLINE",
"version": "8.1.0"
}
},
"transactionSet": "2cb77a02-40eb-11ee-83f4-c8cb9e32df8e:1-4,54d83026-40eb-11ee-a5d3-c8cb9e32df8e:1-138552,54d8329c-40eb-11ee-a5d3-c8cb9e32df8e:1-5"
}
},
"domainName": "myClusterSet",
"globalPrimaryInstance": "127.0.0.1:3310",
"metadataServer": "127.0.0.1:3310",
"primaryCluster": "myCluster",
"status": "HEALTHY",
"statusText": "All Clusters available."
}MySQL HeatWave
If you’re using any type of replication in MySQL HeatWave on OCI, you can use the same views, but you need to create them on a different database as sys is write-protected.
So if you’re using HA, Read Replicas or manual replication channels, you can also use the same views to get an accurate overview of replication.
Conlcusion
Replication observability is very detailed and provides a lot of information with MySQL 8. Maybe now is a good time to change the way you view or monitor replication.
Enjoy MySQL !
